Product family

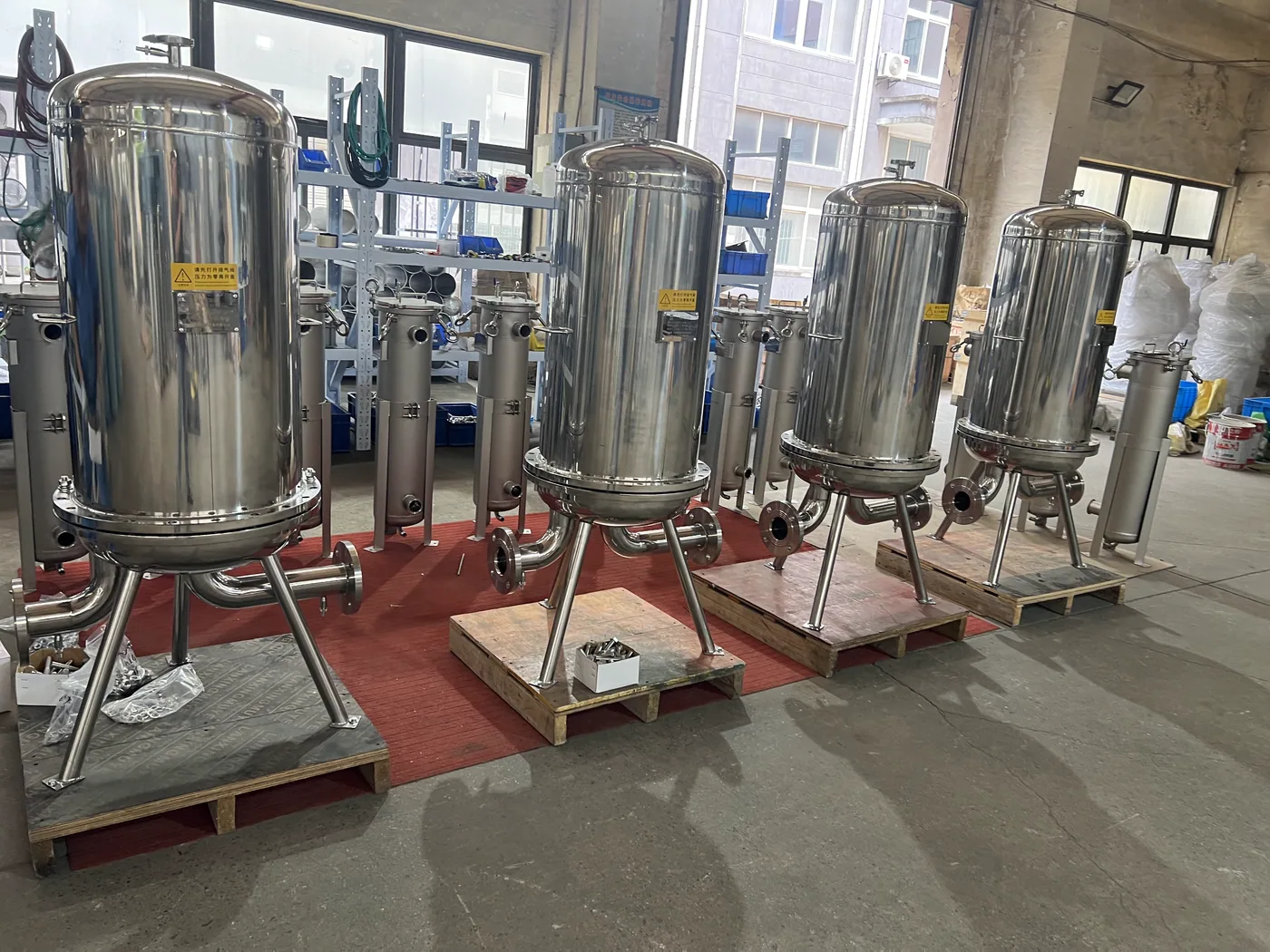

Cartridge Filter Housings
Precision filtration housings for standard 2.5-inch cartridges and project-specific element arrangements.
How to use this family page
Choose the operating concept before the model.
Element media and housing cannot be selected independently. Chemical compatibility, end connection, filtration rating, pressure drop and replacement interval must be reviewed together.
Engineering selection system
Housing and cartridge must be selected as one filtration system.
Nominal flow is only the starting point. Media chemistry, effective area, end connection, seal material and terminal pressure drop determine whether a cartridge system will perform reliably.
Set the filtration result
Define protection, clarification, final polishing or critical filtration and specify nominal/absolute expectations.
Check compatibility
Review fluid or gas chemistry, temperature, sanitation method, extractables and required media such as PES, PTFE or PP.
Size effective area
Use peak flow, viscosity, dirt load and acceptable clean/terminal differential pressure to determine cartridge count and length.
Lock the interface
Confirm 10/20/30/40-inch length, 222/226/flat/M30/215 style, gasket material, housing connection and replacement clearance.
Preliminary route matrix
| Operating condition | Recommended starting route | Engineering focus |
|---|---|---|
| Low-flow point-of-use or compact duty | Single-cartridge housing | Connection, cartridge interface and local service clearance. |
| Higher flow or greater filtration area | Multi-cartridge housing | Even flow distribution, cartridge count and differential pressure. |
| Fine or critical final filtration | Membrane cartridge route | Rating, wettability, integrity expectations and compatibility. |
| High incoming dirt load | Bag prefiltration upstream | Protects the cartridge stage and extends replacement interval. |
RFQ readiness
Send the operating envelope and cartridge interface.
These inputs allow engineering to confirm both the housing and the replacement element.
- Fluid/gas and chemical composition
- Target rating and filtration objective
- Normal / peak flow and viscosity
- Temperature, pressure and differential pressure
- Cartridge length, end style and gasket
- Cleaning, sterilization and change-out requirements
Housing + cartridge compatibility
Review pleated cartridges ↗Continue to detailed cartridge media selection.
The consumables site provides material, rating and interface resources that complete the equipment decision.
Reference flow and temperature figures are family limits, not guarantees for every material and cartridge. Final duty requires compatibility, hydraulic and interface confirmation.
Product configurations
Choose a technical starting point
Use the routes below to review a verified technical page or send the selected configuration directly to engineering. Final sizing follows the actual process conditions.
1–242 cartridges
Multi-Cartridge Filter Housing
Configurable area, cartridge length and end connections.
View technical page →Selection routeSingle-Cartridge Housing
Compact polishing filtration route.
View technical page →Supporting mediaCompatible Filter Cartridges
PES, PTFE, PP and other media selected by process.
View technical page →Technical inquiry
Need help selecting within the cartridge filter housings family?
Send the process conditions and we will route the request to the appropriate product configuration.
