Product family
Diatomaceous Earth Filtration Equipment
Clarification equipment using diatomite filter aid rather than filter cloth or membrane consumables.
How to use this family page
Choose the operating concept before the model.
Closed-plate equipment belongs in this family when diatomite is the filtration aid and cloth or membrane consumables are not used. This avoids false overlap with conventional plate filtration.
Engineering selection system
Start with clarity target and filter-aid practice.
This family uses diatomaceous earth to build the filtration layer. It is therefore selected by precoat/body-feed behaviour and cake management—not by cloth or membrane specifications.
Define clarification duty
Record feed turbidity, suspended solids, desired clarity and whether product recovery or visual polish is the priority.
Define filter-aid method
Confirm diatomite grade, precoat quantity, body-feed practice and how spent aid will be handled.
Define the batch
Provide batch volume or continuous flow, cycle time, allowable pressure rise and expected cake loading.
Define cleaning and containment
Set material, enclosure, drainage, internal access and cleaning requirements around the product and plant.
Preliminary route matrix
| Process need | Recommended starting route | Selection emphasis |
|---|---|---|
| Compact vertical arrangement and batch clarification | Vertical diatomite filter | Footprint, cake release and operating cycle. |
| Horizontal vessel or service-access preference | Horizontal diatomite filter | Available area, access and plant layout. |
| Enclosed plate architecture using diatomite | Closed-plate diatomite filter | Filter-aid layer and enclosed clarification path. |
| No filter aid; cloth/membrane cake filtration | Conventional plate filtration | This is a different mechanism and product family. |
RFQ readiness
Provide the clarification cycle, not only the flow.
A representative process description is more useful than an assumed model number.
- Liquid and product sensitivity
- Feed solids/turbidity and clarity target
- Batch volume or normal / peak flow
- Diatomite grade and precoat/body-feed practice
- Temperature, pressure and material
- Cycle, cleaning and spent-aid disposal method
Diatomite dosage, cycle length and filtration area are project variables. Final selection requires process data and, for critical duties, representative testing by the customer or an agreed test facility.
Product configurations
Choose a technical starting point
Use the routes below to review a verified technical page or send the selected configuration directly to engineering. Final sizing follows the actual process conditions.
Selection route

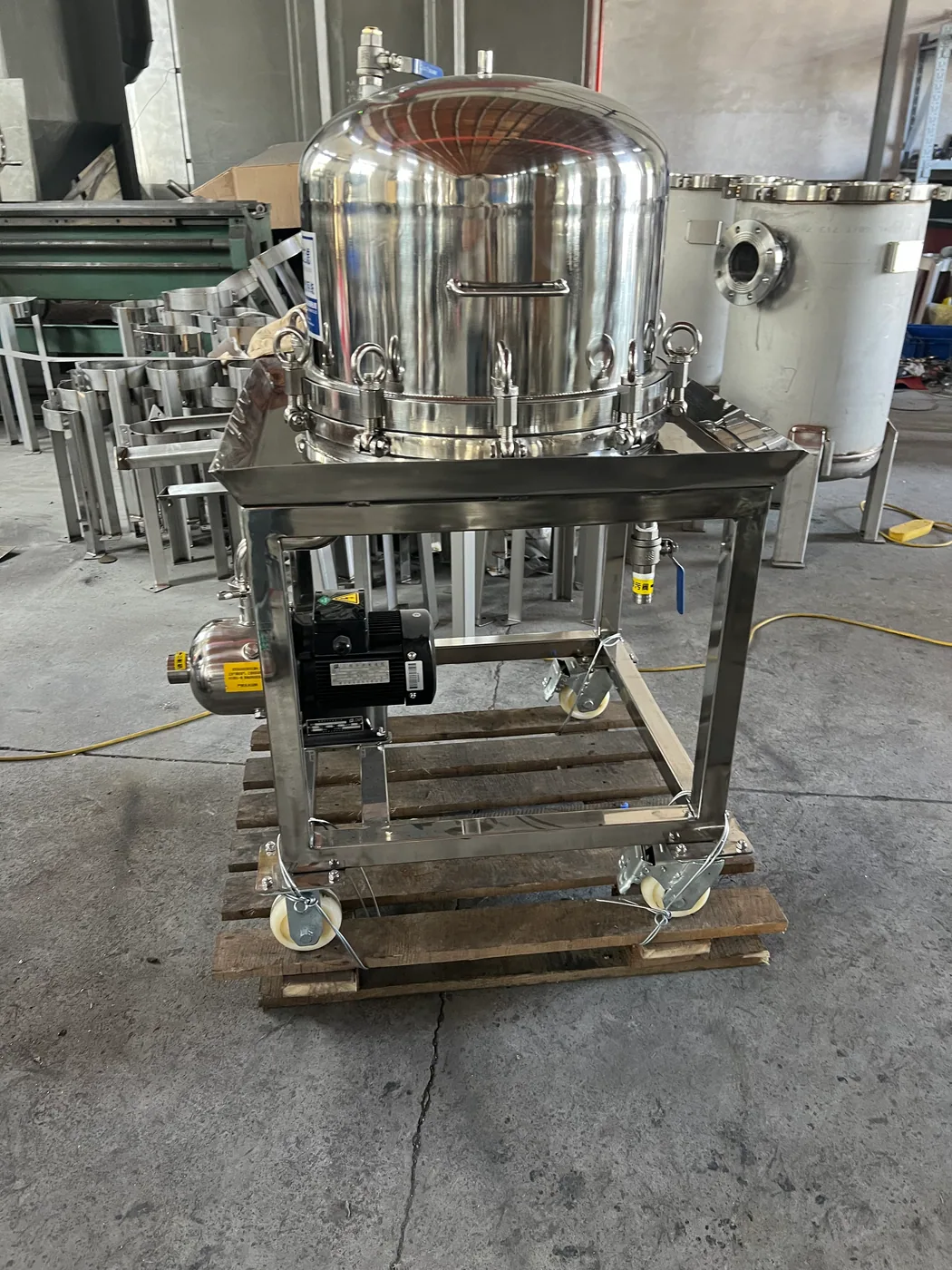

Vertical Diatomite Filter
Independent technical route linked to the original catalogue.
View technical page →Selection routeHorizontal Diatomite Filter
Independent technical route linked to the original catalogue.
View technical page →Distinct mechanismClosed-Plate Diatomite Filter
Classified here because it uses diatomite filter aid.
View technical page →Technical inquiry
Need help selecting within the diatomaceous earth filtration equipment family?
Send the process conditions and we will route the request to the appropriate product configuration.
