Cartridge Filter Housings

Depth Membrane Stack

Review an actual JINLV equipment photograph and submit your process conditions for the appropriate configuration.

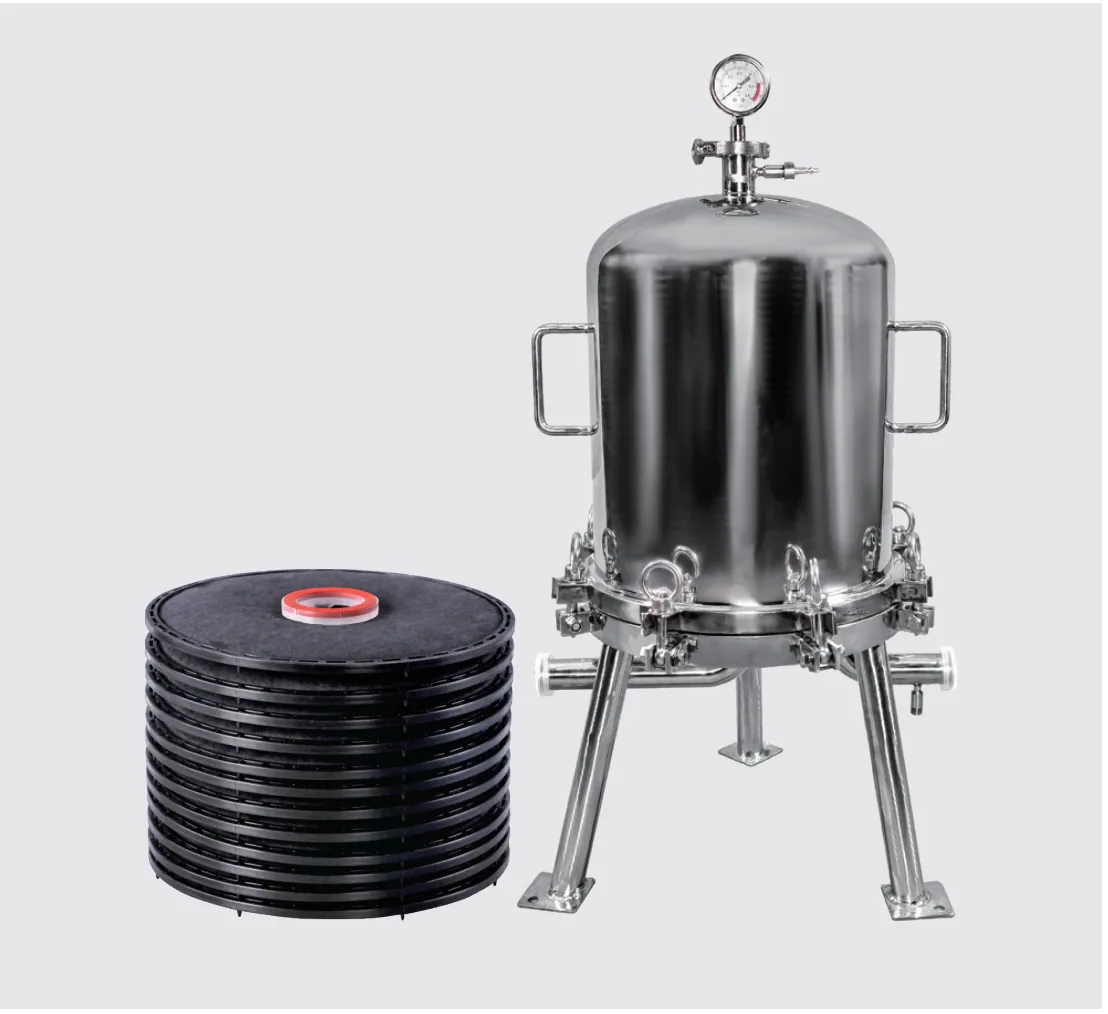

Source-library photograph for JINLV Depth Membrane Stack
Source-library photo. Photo is from the shared membrane-stack folder; exact media configuration requires confirmation.
Current product range

Depth Membrane Stack

This product appears in the current classification framework under Cartridge Filter Housings. The pictured equipment is a source-library example; project specifications are determined from operating data and the approved design.

Request this configurationCompare this family →
Engineering review

Design questions for Depth Membrane Stack

These are the points to confirm for this product type. They are questions, not published equipment specifications.

  1. Confirm depth-media grade and expected loading from process trials.
  2. Confirm stack diameter, count and sealing interface.
  3. Confirm cleaning, replacement and disposal requirements.
Evidence boundary

What is confirmed on this page

The current product name and family come from the supplied classification framework; the photograph comes from the matching JINLV image folder.

Confirm before quotation

  • Fluid and solids or filter-medium compatibility
  • Normal and peak flow
  • Operating pressure and temperature
  • Material, seals and surface requirements
  • Element count, closure, piping and connection details
  • Controls, cleaning sequence and maintenance clearance

No model-specific pressure, flow, size, filtration accuracy or certification scope is inferred from the photograph.
