- Fine or polishing filtration
- Processes using replaceable PES, PTFE, PP or other compatible cartridges
- Projects requiring large filtration area within one vessel
Cartridge filter housings
Multi-Cartridge Filter Housing
Configurable precision filtration from 1 to 242 standard 2.5-inch cartridges.

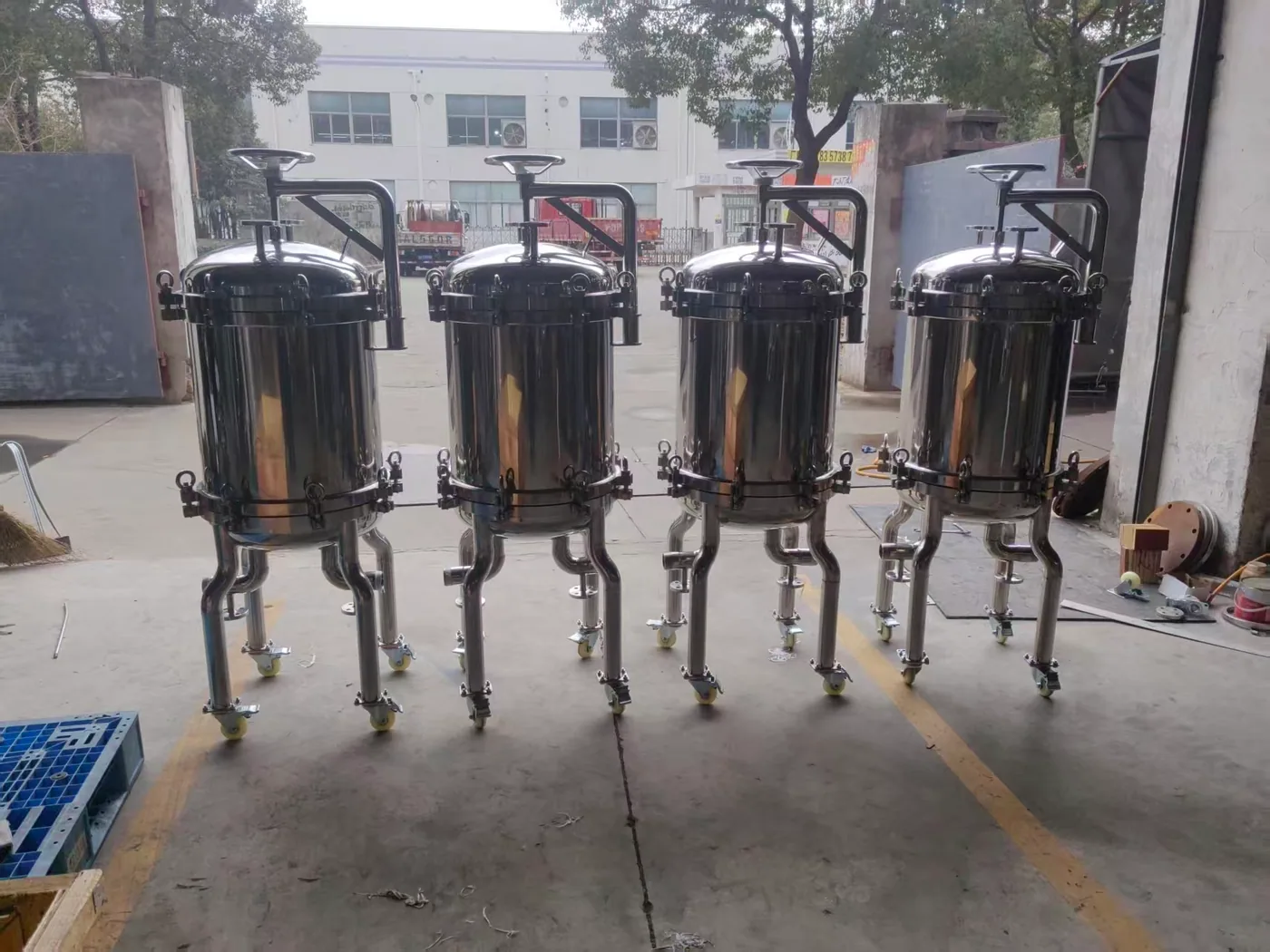

Representative equipment imageProduct overview
Engineering purpose
Multi-cartridge housings increase filtration area within one pressure vessel. Cartridge quantity, length, end connection and media are selected together to meet flow, retention and compatibility requirements.
Published series range
Technical starting point
These values describe the available series or a confirmed engineering range. The quotation and approved drawing define the final equipment.
| Cartridge quantity | 1–242 |
|---|---|
| Cartridge diameter | Standard 2.5 inch |
| Available lengths | 10 / 20 / 30 / 40 inch |
| Series reference flow | 0.5–484 m³/h; project sizing required |
| Body materials | Carbon steel, 304 or 316L |
| Temperature limit | Up to 150°C, subject to element and seal |
Final design is verified against medium, operating conditions, materials, seals and applicable drawing.
- Unknown cartridge geometry or end connection
- Service exceeding confirmed housing, seal or cartridge limits
- High solids duty better served by bag or self-cleaning filtration
Selection checklist
Information required for a useful quotation
Send what is available. Missing fields can be confirmed with Sylvia during the first technical review.
- 01Medium and target accuracy
- 02Required flow and clean pressure drop
- 03Cartridge material and length
- 04222, 226, double-open-end, M30 or other connection
- 05Pressure, temperature and cleaning method
- 06Body material, nozzle and surface finish
Source traceability
Open catalogue PDF page 9Check the original catalogue page
Published values are tied to the supplied JINLV catalogue. Project-specific values remain subject to the quotation and approved drawing.
