Diatomaceous earth filtration
Horizontal Diatomite Filter
Horizontal clarification equipment using diatomite filter aid.

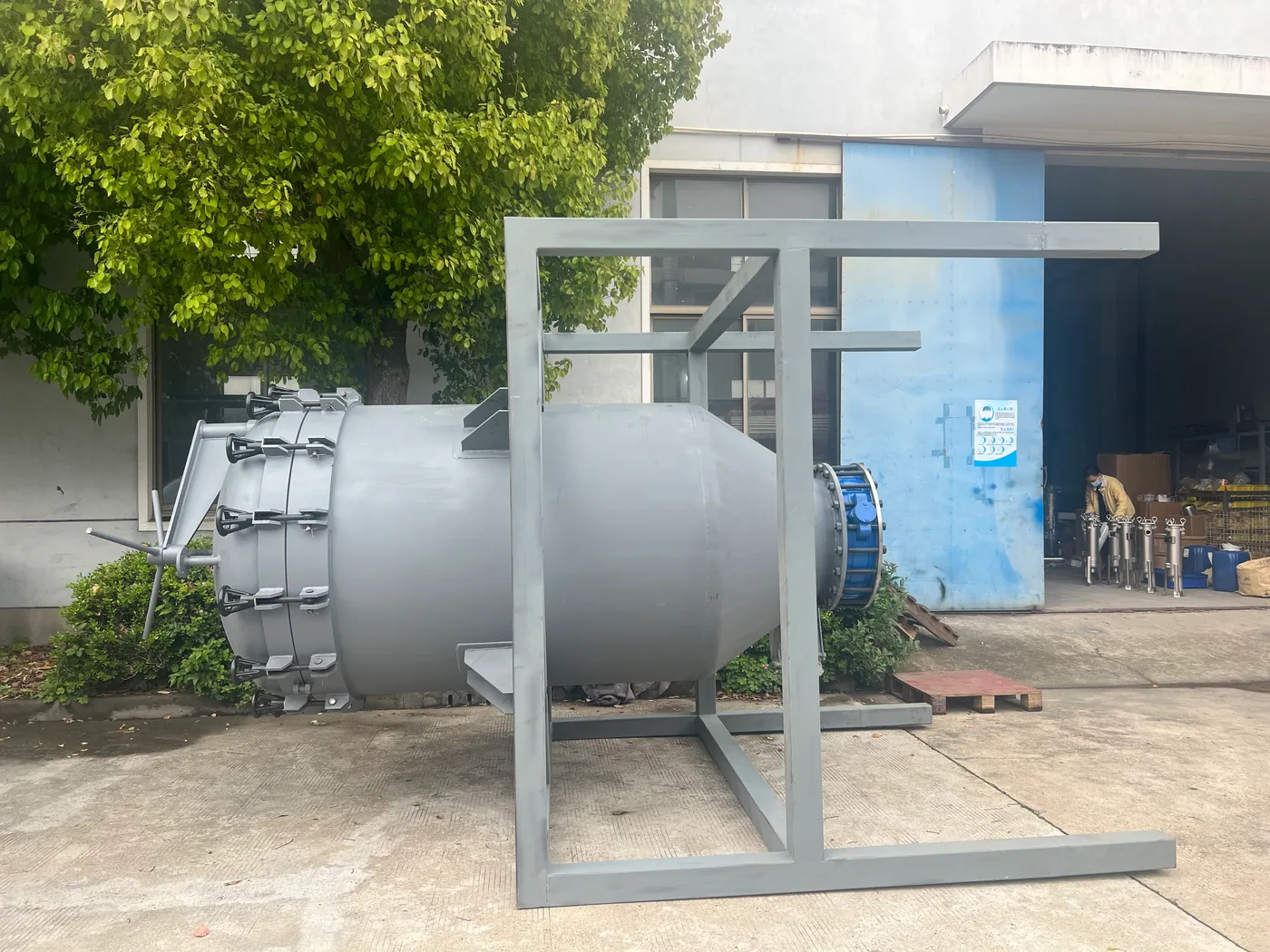

Representative equipment imageProduct overview
Engineering purpose
Horizontal clarification equipment using diatomite filter aid. This page keeps the product route independent while final model, dimensions and duty data are selected from the supplied JINLV catalogue and approved project drawing.
Published series range
Technical starting point
These values describe the available series or a confirmed engineering range. The quotation and approved drawing define the final equipment.
| Catalogue family | Diatomite Filter Series |
|---|---|
| Printed catalogue pages | 42–53 |
| PDF file pages | 23–28 |
| Published model data | Use the linked original catalogue pages |
| Final equipment data | Confirmed by quotation and approved drawing |
Final design is verified against medium, operating conditions, materials, seals and applicable drawing.
- Selecting only from an unverified flow figure
- Assuming one model fits every medium or solids load
- Ordering before material, pressure and connection review
Selection checklist
Information required for a useful quotation
Send what is available. Missing fields can be confirmed with Sylvia during the first technical review.
- 01Medium and solids characteristics
- 02Normal and peak flow
- 03Target filtration result
- 04Pressure and temperature
- 05Wetted material and seals
- 06Connections, controls and installation limits
Source traceability
Open catalogue PDF page 23Check the original catalogue page
Published values are tied to the supplied JINLV catalogue. Project-specific values remain subject to the quotation and approved drawing.
Technical inquiry
Have a filtration duty to review?
Send the medium, flow, pressure, temperature and target accuracy. Sylvia will respond within 8 hours.
