Bag filter housings
A practical first route for general suspended solids and planned media change-out.
Review equipment route →Solution · Water treatment
Water Treatment Filtration Solutions
Match the equipment to water quality, flow, contaminant load and the downstream process—not to an industry label alone.
Process duties
Define what the filtration step must accomplish.
- Protect membranes, nozzles and downstream equipment
- Remove suspended solids before a finer polishing stage
- Maintain flow while reducing manual intervention
- Move one filtration unit between tanks or process points
Duty-to-equipment map
Choose the route from the job of the filtration stage.
The table is preliminary guidance. Water analysis, hydraulic sizing, materials and the downstream equipment remain part of engineering review.
| Filtration duty | Starting equipment route | Key confirmation |
|---|---|---|
| General suspended-solids removal | Bag filter housing | Solids load, bag area, pressure drop and change-out frequency |
| Downstream protection or final polishing | Cartridge filter housing | Rating, cartridge area, interface and upstream prefiltration |
| Reduced-interruption continuous duty | Automatic / duplex filter | Contaminant release, cleaning utilities, valves and controls |
| Multiple tanks or temporary use points | Mobile filtration package | Pump hydraulics, floor, mobility, power and hose arrangement |
| Membrane or RO system protection | Project-defined pretreatment train | Water analysis and membrane supplier limits; no universal route is implied |
Equipment routes
Compare mechanisms before choosing a model.
Each route solves a different operating problem. More stages are not automatically better; the correct arrangement follows the inlet water and the required outlet.
Cartridge filter housings
A polishing route where lower solids and finer retention are the main duty.
Review equipment route →Automatic filters
A reduced-interruption route where cleaning or chamber switching should be automated.

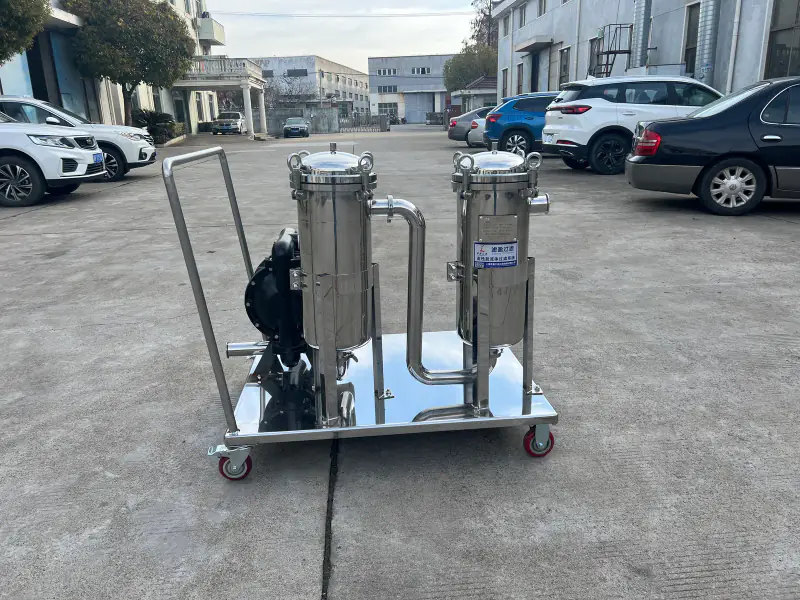

Review equipment route →Mobile filter package
A pump, housing and piping package for flexible use points.
Review equipment route →Selection boundaries
What this page does not prove
- Water analysis and chemical additions can change material and seal suitability.
- Published flow ranges are references; pressure loss and dirt loading still require sizing.
- Membrane and RO protection criteria must come from the selected downstream system.
- This page is application guidance, not evidence of a completed customer installation.
Send for review
Minimum useful process inputs
- Water source and composition
- Normal and peak flow
- Particle size or turbidity information
- Operating pressure and temperature
- Target result and downstream equipment
- Cleaning frequency and available utilities
Engineering review
Need help choosing the first technical route?
Send available process data. Incomplete information is acceptable, and Sylvia will identify the next required inputs.
