- Large continuous-duty process lines
- Fine fibres, soft impurities, oil sludge and similar contaminants
- Projects requiring reusable metal filter elements and scalable capacity
Automatic & self-cleaning

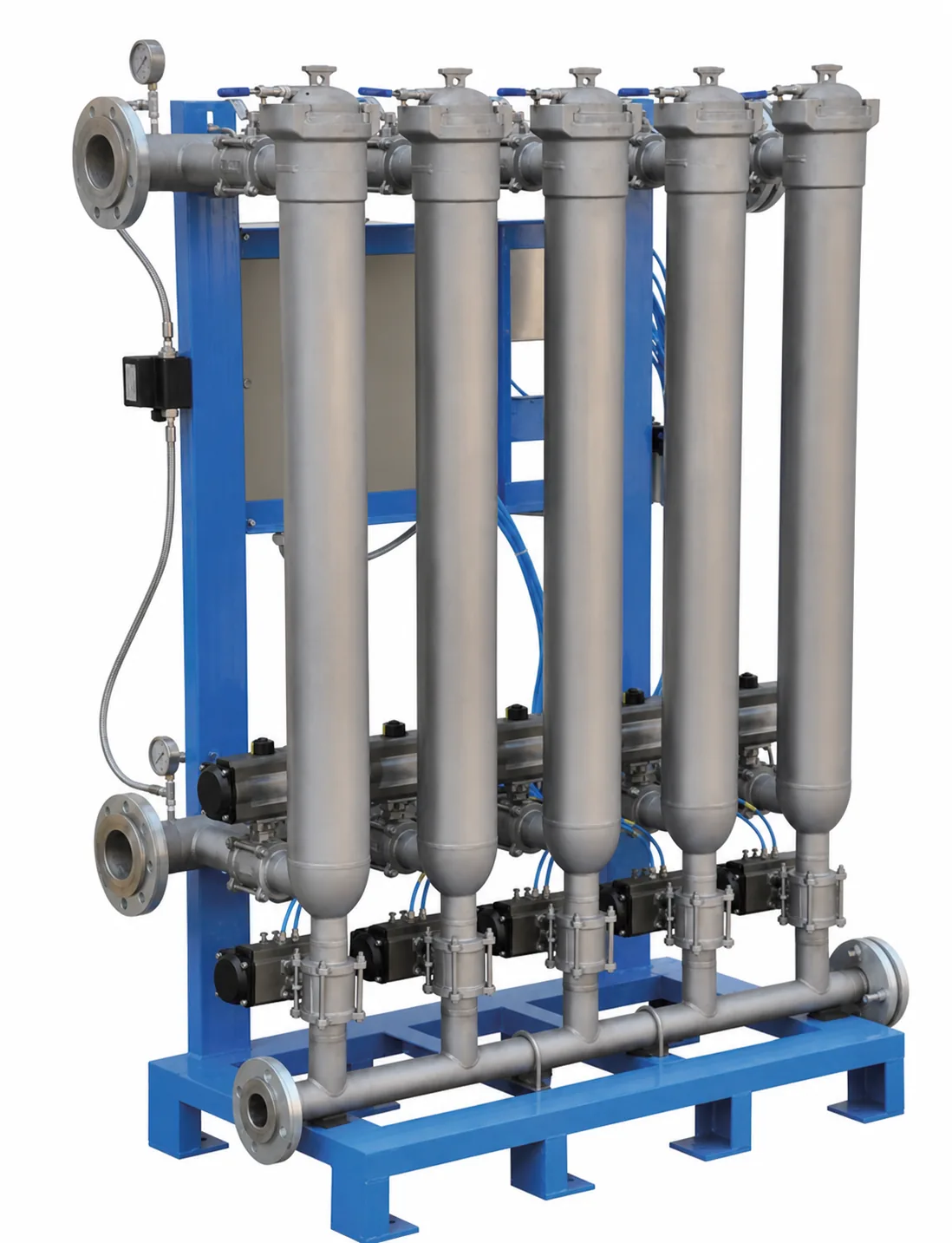

Modular Self-Cleaning Filter System
Continuous filtration with sequential automatic back-flushing and modular expansion.
Representative equipment imageProduct overview
Engineering purpose
Three to twenty-four modules operate in parallel. During back-flushing, one module is cleaned while the remaining modules continue filtering, supporting continuous production and later capacity expansion.
Published series range
Technical starting point
These values describe the available series or a confirmed engineering range. The quotation and approved drawing define the final equipment.
| Module quantity | 3–24 |
|---|---|
| Filtration rating | 20–500 μm |
| Design pressure | 1.6 / 2.5 / 4.0 MPa configurations |
| Design temperature | 0–250°C depending on seals and valves |
| Main header | DN80–DN400 |
| Control | PLC with differential-pressure and time control; DCS dry contacts |
Final design is verified against medium, operating conditions, materials, seals and applicable drawing.
- Small intermittent duties better served by a simple housing
- Applications without sufficient back-flush utilities
- Processes where contaminant behaviour has not been evaluated
Selection checklist
Information required for a useful quotation
Send what is available. Missing fields can be confirmed with Sylvia during the first technical review.
- 01Medium composition, viscosity and solids
- 02Normal and peak flow
- 03Target rating and allowable pressure drop
- 04MFR filtrate back-flush or MFV external liquid/gas back-flush
- 05Wetted material and seal requirements
- 06Instrument air, DCS interface and installation limits
Technical inquiry
Have a filtration duty to review?
Send the medium, flow, pressure, temperature and target accuracy. Sylvia will respond within 8 hours.
