Vessel & internals
Housing format, element count, support basket, internal sealing and maintenance access.
OEM / ODM Engineering
Custom equipment made visible through real project drawings.
From filter housings to integrated skids, JINLV adapts geometry, interfaces, access, piping and controls around the approved project duty.
56Distinct case configurations9Evidence categories1 unitEquipment project minimumDrawingApproval defines final scope
Project evidence
Not one sample. A visible library of engineered configurations.
Every preview is derived from an anonymized source drawing. The card explains an application concept and the checks still required before approval.
What a drawing provesConfiguration, geometry and interface intent. It is not proof of flow, filtration accuracy, pressure capability or an installed customer result.Open the complete project library →
Custom capability map
What can be configured—and what must be confirmed.
OEM/ODM scope is reviewed in layers so changes to one part do not hide effects on another.
Nozzles & connections
Orientation, connection standard, vent, drain, instruments and site tie-in points.
Skid integration
Pump, piping, valves, frame, mobility, bypass and staged filtration arrangement.
Controls & utilities
Control logic, power, air, signals and hazardous-area requirements where applicable.
Six approval gates
From a process brief to controlled manufacture.
Actual lead time and deliverables depend on the agreed design, materials, inspection and documentation scope.
Duty definition
Medium, flow, solids, pressure, temperature, target and operating schedule.
Concept route
Bag, cartridge, automatic, candle, press, vessel or integrated system.
Mechanical scope
Materials, geometry, connections, frame, access and applicable requirements.
System integration
Pumps, piping, controls, utilities, signals and installation boundary.
Drawing approval
Critical interfaces and assumptions are confirmed before production release.
Manufacture & support
Fabrication, inspection, documentation, packing and agreed technical support.

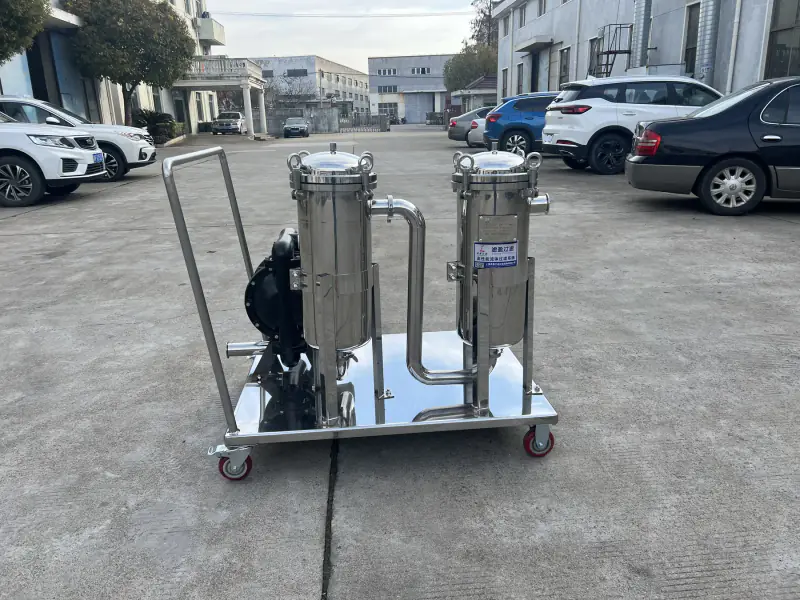

Actual project photoPhysical configuration example
Mobile filtration cart
A bag or cartridge housing can be integrated with a pump, motor, piping, valves, frame and controls. The final arrangement is selected from the actual duty and site requirements.
- Confirm liquid properties and operating conditions
- Match pump and filtration-stage pressure drop
- Approve power, mobility, drain and access
- Define hazardous-area requirements where applicable
OEM / ODM inquiry
Start an OEM/ODM reviewSend the duty, drawing or equipment photo.
We will identify the configuration path and the inputs still needed for a responsible quotation.
